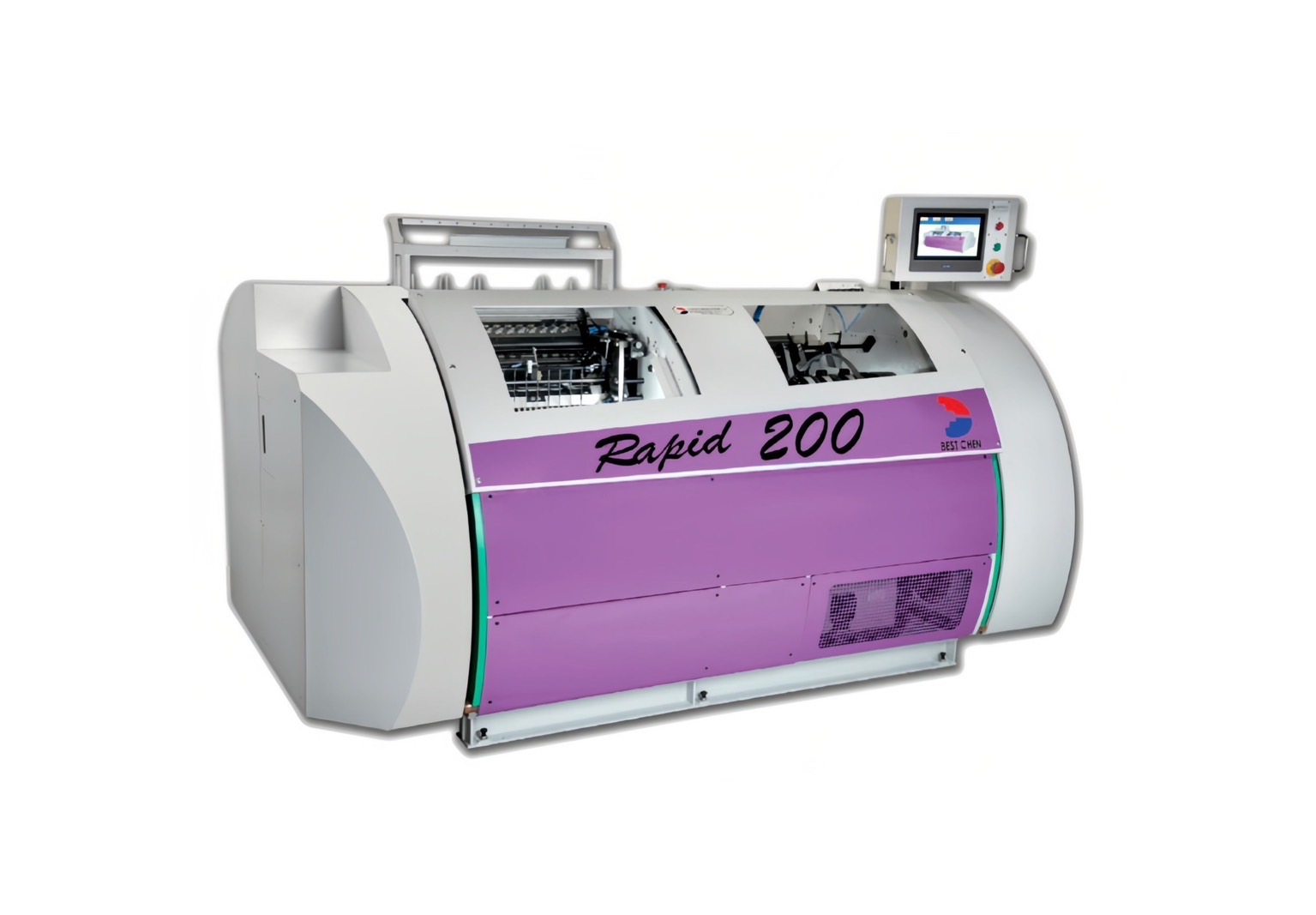

Automatic sewing machine BCL-200s
Product Detail
The main function:

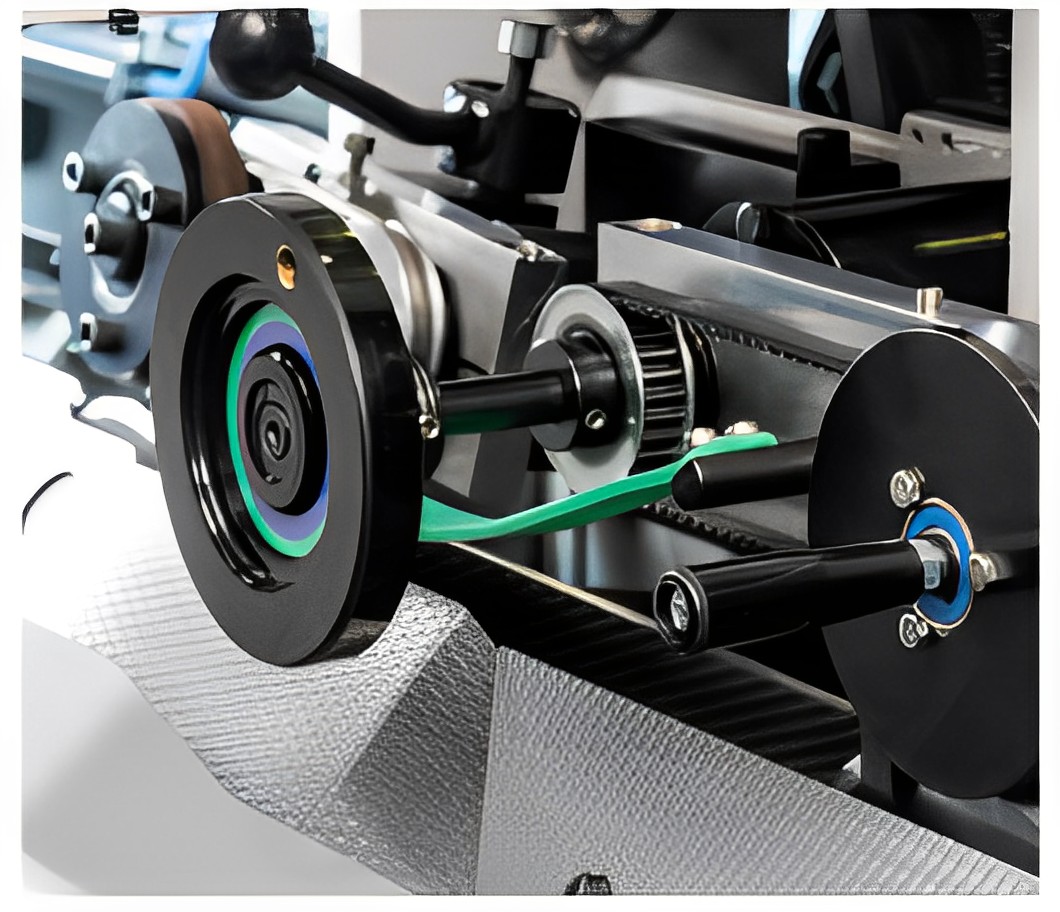

※ The locking saddle mechanism is driven by the camshaft of the "cam box", and the transmission components operate in a sealed oil tank, so that the cam has an extremely long life and does not require daily inspection and maintenance.
※ The height of the accelerating wheel can be adjusted according to the thickness of the signature.
● The machine performance design is extremely compact. The distance between the feeding hopper and the book collecting table is only 1 meter, which saves space and makes collecting books convenient and fast.
● 10-inch color touch panel, matched with PLC system, easy to operate.

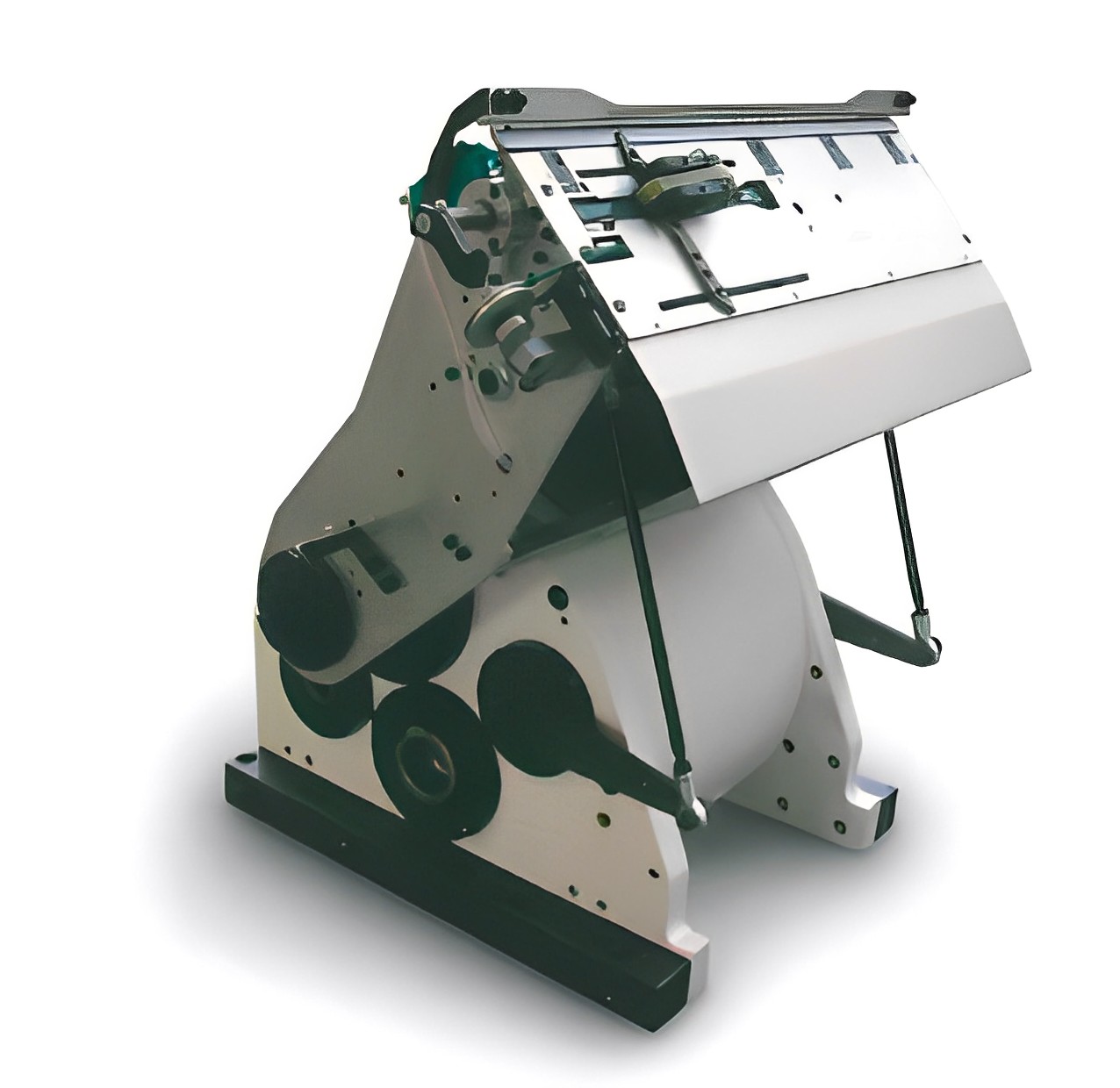

● The feeding hopper has large capacity and is comfortable to load.
● The feed transmission adopts the latest double-fulcrum camshaft arm design, which can make signatures more stable and reduce downtime.

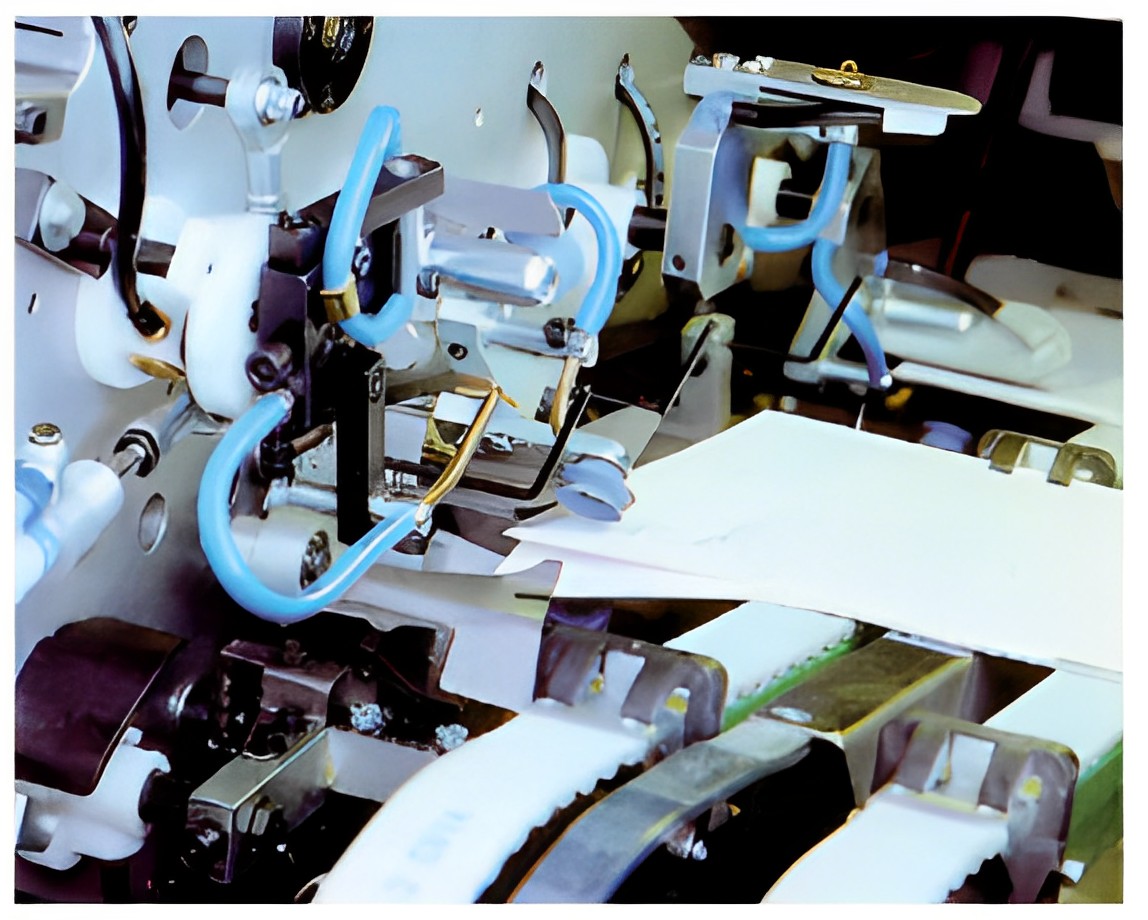

● For page turning requirements, it is equipped with 4 vacuum page turners on the upper and lower sides and long and short side page turners to facilitate high-efficiency production.
● A special shaper that pre-processes the back of the book before sewing to ensure the quality of the sewing.
● Thread needles and hook needles can accurately follow the book to ensure the highest thread locking quality.
● This machine has an image taking function, which can effectively prevent wrong order of signatures (optional).
● At the book outlet, the book blocks are automatically separated for easy collection.
● The thread trimming device automatically reduces the thread of the finished book to about 10 mm.
